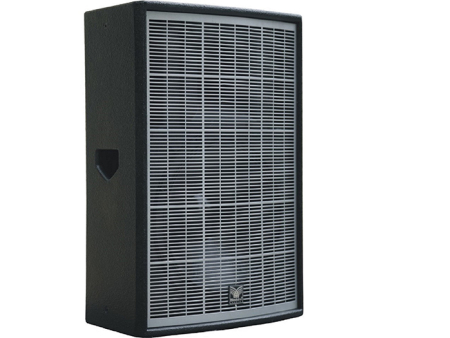

Component: (組件)  LF: 1*15inch ferrite drivers, 75mm voice coil(音圈)

                   HF:  1*1.5 inch hi driver,big  voice coil

Frequency Response: (頻響) 45 Hz- 18K Hz

Rated power: (平均功率)  500W

Peak power: (峰值功率)  2000W

Nominal Impedance: (阻抗)  8ohm

Sensitivity( 1W@1m): (靈敏度)  100dB SPL

Component: (組件)  LF: 1*15inch ferrite drivers, 75mm voice coil(音圈)

                   HF:  1*1.5 inch hi driver,big  voice coil

Frequency Response: (頻響) 45 Hz- 18K Hz

Rated power: (平均功率)  500W

Peak power: (峰值功率)  2000W

Nominal Impedance: (阻抗)  8ohm

Sensitivity( 1W@1m): (靈敏度)  100dB SPL

Maximum SPL: (聲壓)    127dB peak

Horizontal: 水平 80度

Vertical: 垂直  50度

Crossover: 分頻點(diǎn)  1.8K Hz

Built-in amplifier: （不帶功放，無源）

Connector: NL4*2

Enclosure material:   18mm 多層雜木

Finish : 環(huán)保水性加硬油漆

Grille:  1.5MM厚鋼網(wǎng)

Dimension (L*H*D) (mm) : 產(chǎn)品尺寸L471*H690*D443MM

Packing Dimension (L*H*D) (mm) : 包裝尺寸 540*760*510MM

N.W (kg): 凈重   31KG

G.W (kg): 毛重 32KG
